Model | F92A3 /F70FA（73605/41206L）/ F92B3 /F70FA（73605B/41206L） |
Inlet/outlet | NPT1 |
Drain | NPT 3/4 |
Brine line connector | G3/8 |
Mounting base | 2.5"-8NPSM |
Riser pipe | 1 "D-GB |
Flow rate | 5m3/h |
Filter tank | 6"--18" |
Water pressure | 0.15-0.6Mpa |
Water temperature | 5-50℃ |
Ambient temperature | 5-50℃ |
Relative humidity | ≤95%（25℃） |
Power adapter | Input AC100~240V/50~60HZ Output DC12V/2A |

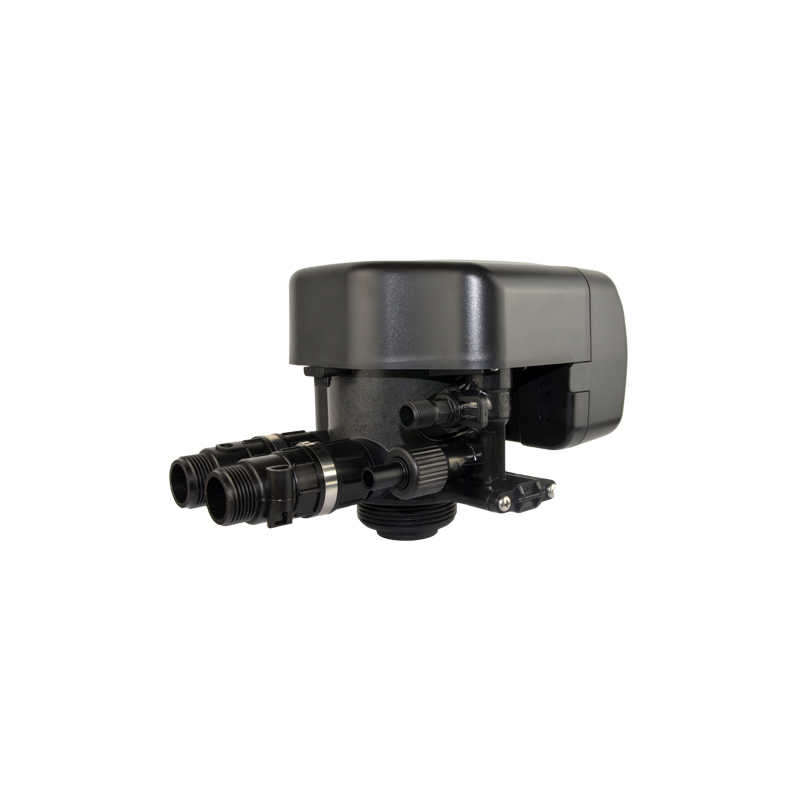

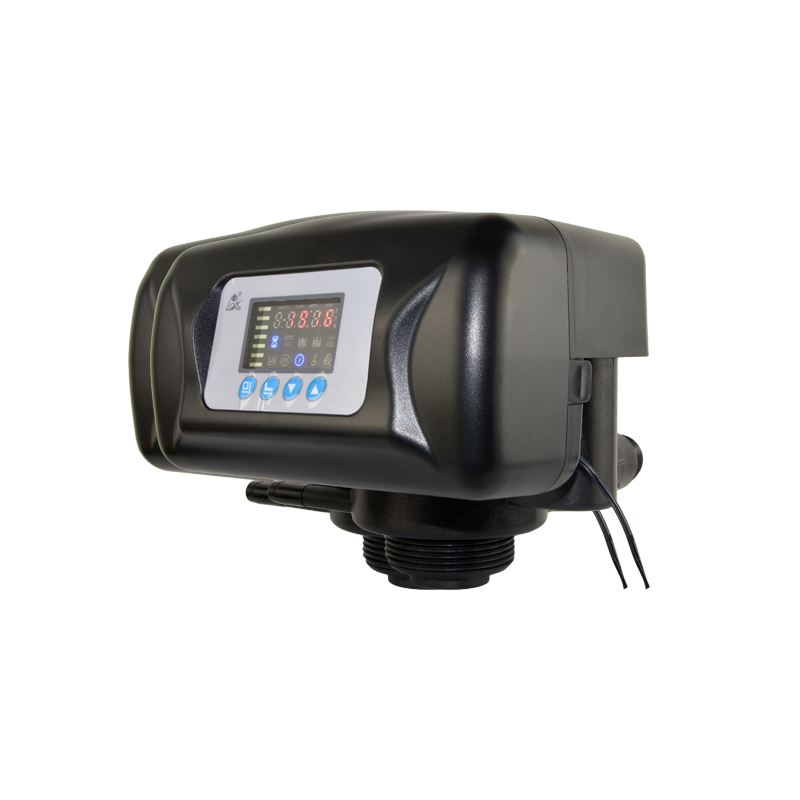

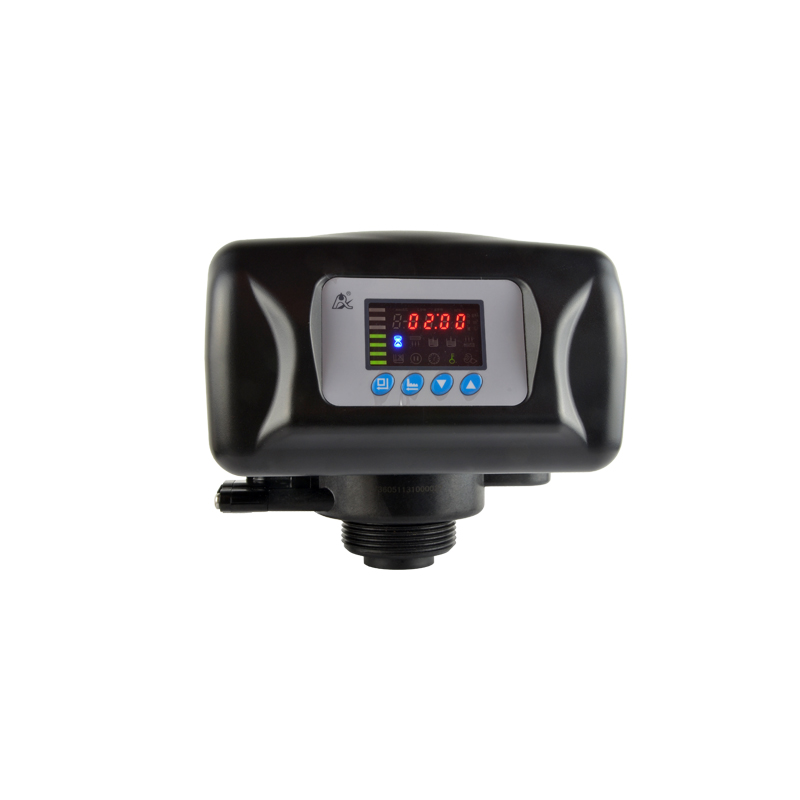

F92 Automatic Multiport Softener Valves
Featuring a flow rate of 5m3/h, the F92 automatic multiport softener valve features a planar and corrosion resistant gasket for opening and closing. Service, backwash, brine and slow rinse, refill and fast rinse functions can be realized. It is easily equipped with a bypass valve F70F which allows the flow of the original water source while regenerating.
Regeneration Mode
Model | Type | Description |
A-01 | meter delayed | Regeneration will be triggered when there's no remaining water and the current time is the same as the regeneration time |
A-02 | meter immediate | Regeneration will be triggered when there's no remaining water left. |
A-03 | Intelligent meter delayed | The capacity of produced water in a cycle is calculated according to the resin volume and feed water hardness. The regeneration method is the same as A-01. |
A-04 | intelligent meter immediate | The capacity of produced water in a cycle is calculated according to the resin volume and feed water hardness. The regeneration method is the same as A-02. |
A-05 | comparison of surplus water | Regeneration will be triggered when the remaining water is the same as or less than the average water consumption for the last 7 days and the current time is the same as the regeneration time. |
A-06 | timer clock | Regeneration will be triggered when the operation time set is over and the current time is the same as the regeneration time. |
