Model | F112A1/A3（63540B/63640B） |
Regeneration | Time clock type / meter type |
Mount type | Side mount |
Inlet/outlet | DN65 |
Drain | DN65 |
Brine line connector | 3/4" M |
Mounting base | Side mount， Top and bottom distributor basket DN80 |
Riser pipe | Side mount， Top and bottom distributor basket DN80 |
Flow rate | 40m3/h |
Filter tank | 24"--60" |
Water pressure | 0.2-0.6MPa |
Water temperature | 5-50℃ |
Water turbidity | ＜5FTU |
Relative humidity | ≤95%（25℃） |
Power adapter | Input AC100~240V/50~60HZ Output DC24V/4A |

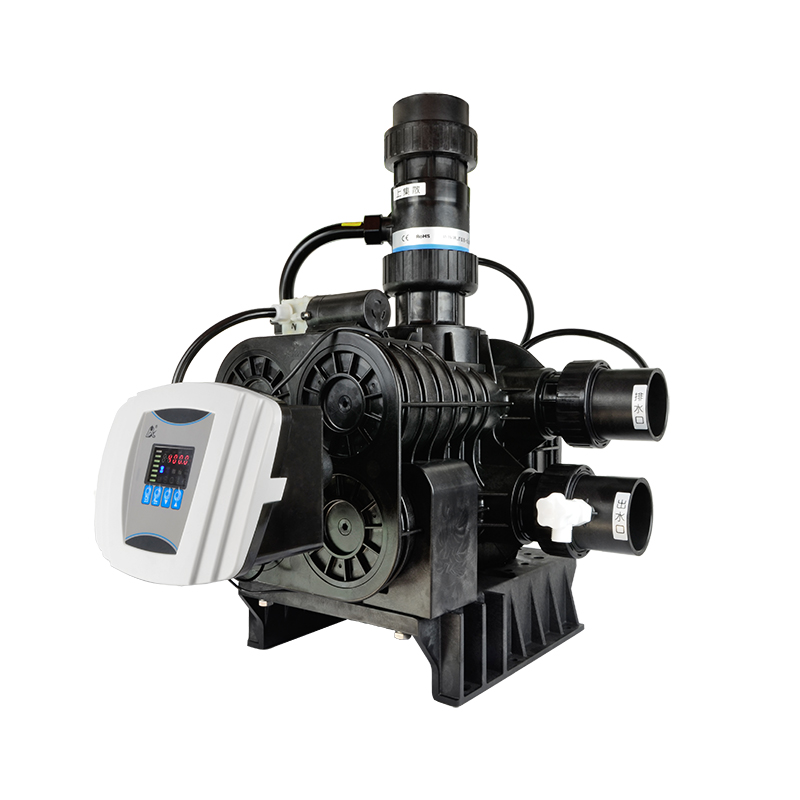

F112A Automatic Multiport Softener Valves
The F112A automatic multiport softener valve features a flow rate of 40m3/h. The F112A3 comes with 4 ports in a T-configuration within the valve body. Unfiltered water is brought in from the pump port, which is sent to different passages for treatment. The different flow passages are easily controlled through pushing or pulling the hydraulically balanced pistons in the valve. Also, the F112A3 is equipped with a booster pump which makes it possible to ensure normal piston operation when the inlet pressure is under 0.2MPa. This device can be used in boiler softening systems and softening in RO pretreatment.
