Model | F64A1/A2（61104/ 61204） |
Handle material | Metal/plastic |
Mount type | Top mount |
Inlet/outlet | 1"F |
Drain | 1/2"M |
Brine line connector | 3/8"M |
Mounting base | 2.5"-8NPSM |
Riser pipe | 1.05"OD |
Flow rate | 4m3/h |
Filter tank | 6"--18" |
Water pressure | 0.15-0.6Mpa |
Water temperature | 5-50℃ |
Water turbidity | Down-flow regeneration＜5FTU |
Application | Ion exchange equipment, water softener for boiler system,RO pretreatment system |

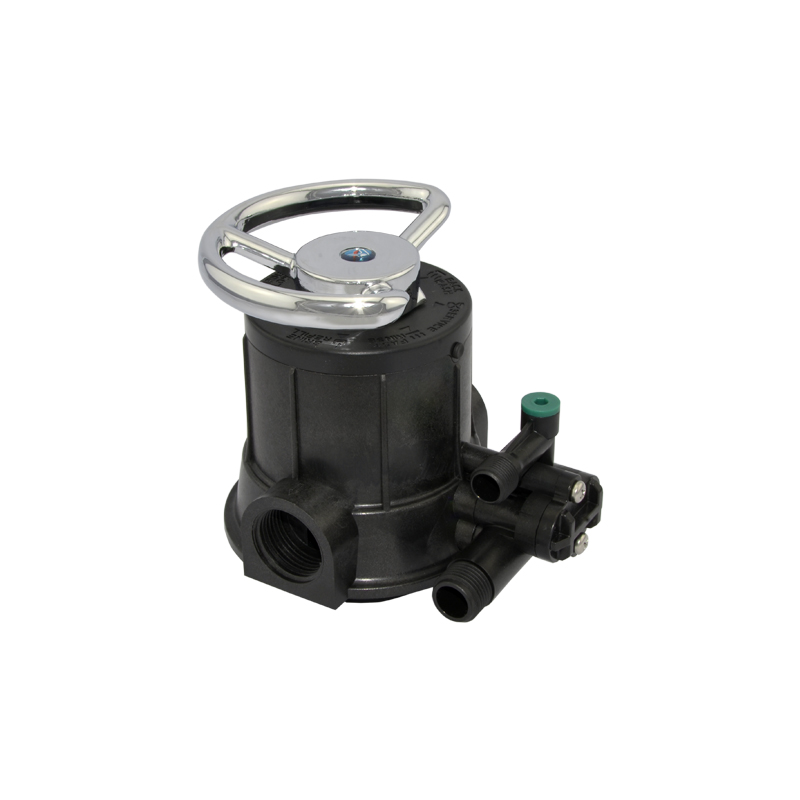

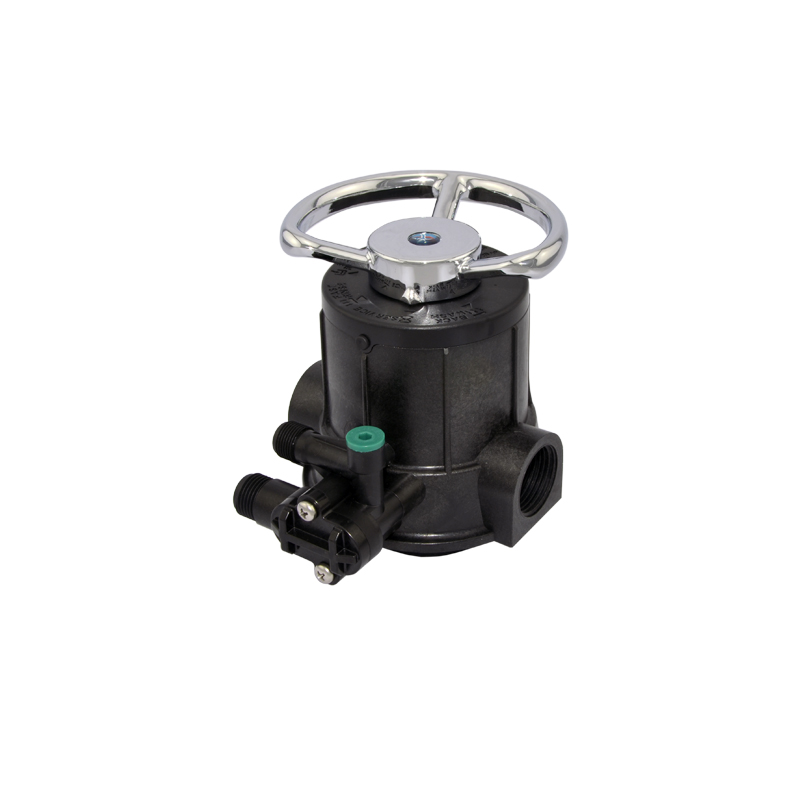

F64A Manual Multiport Softener Control Valves
The F64A manual multiport softener control valve operates with a flow rate of 4m3/h. It carries out the functions of service, backwash, brine and slow rinse, brine refill, and fast rinse. The functions can be switched by rotating the handwheel.
Simple structure and reliable sealing
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with Service, Backwash, Brine & Slow Rinse, Brine Refill and Fast Rinse.
No water pass the valve of single tank type in regeneration.
Various methods for installation
The valve can be top-mounted and side-mounted (Should be used with the side-mounted connector).
Handle alternatives: Metal and plastic
