Model | F64D（61210） |
Handwheel material | Plastic |
Mount type | Top mount / side mount |
Inlet/outlet | 2"M |
Drain | 1"M |
Brine line connector | 1/2"M |
Mounting base | 2.5"-8NPSM |
Riser pipe | 1.5"D-GB |
Flow rate | 10m3/h |
Filter tank | 10"--30" |
Water pressure | 0.15-0.6Mpa |
Water temperature | 5-50℃ |
Water turbidity | Down-flow regeneration＜5FTU |
Application | Ion exchange equipment, water softener for boiler system,RO pretreatment system |

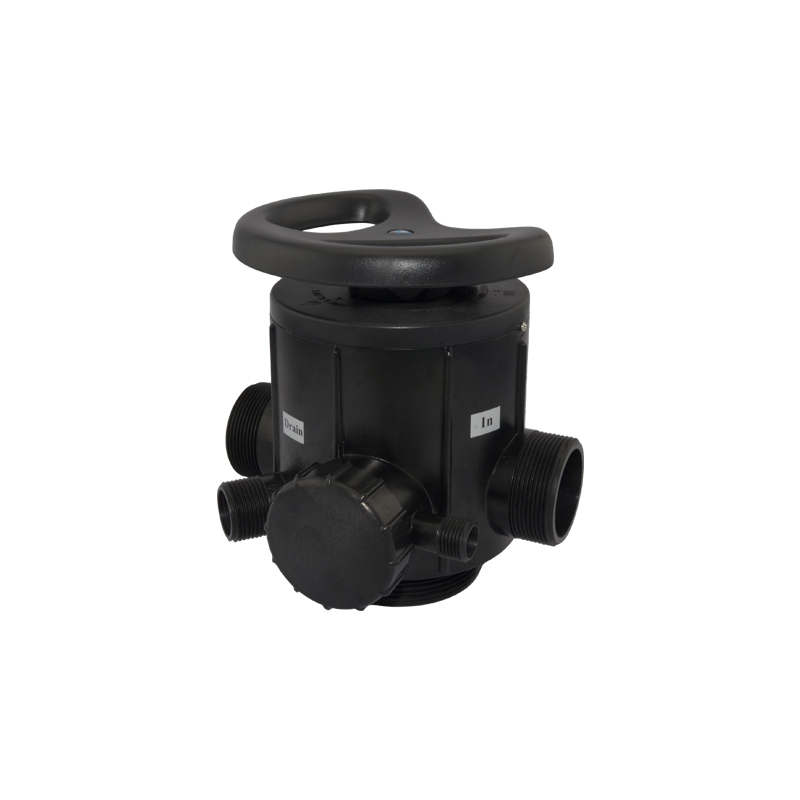

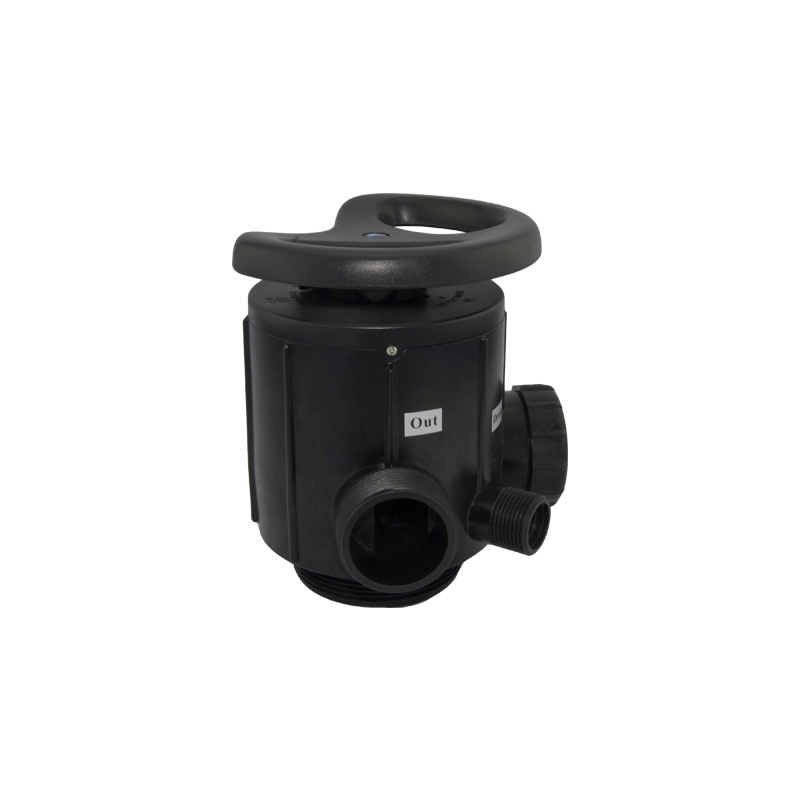

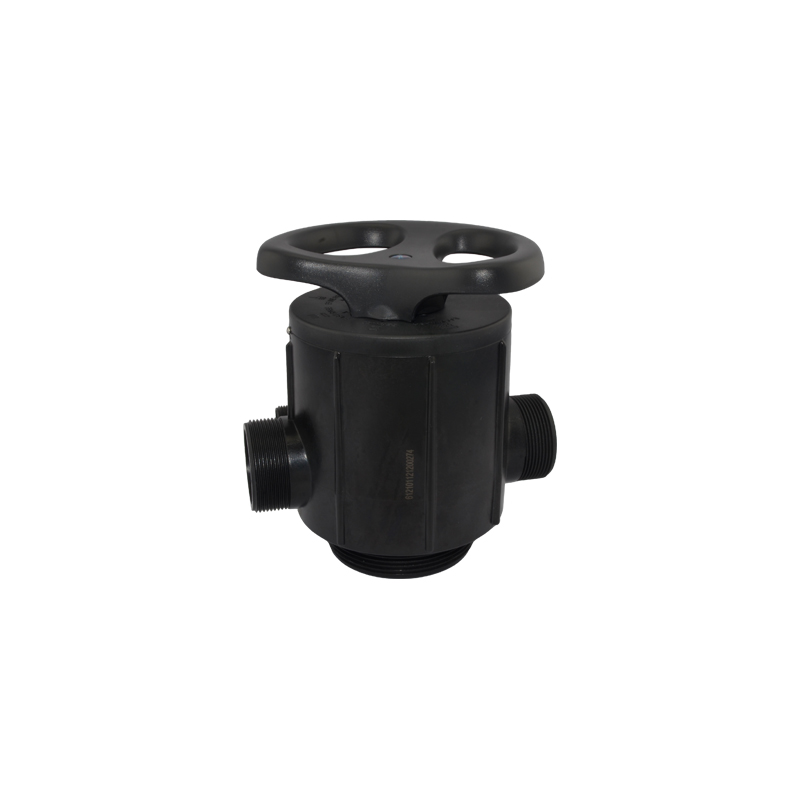

F64D Manual Multiport Softener Control Valves
The F64D manual multiport softener control valve delivers a flow rate of 10m3/h. The valve is able to carry out the functions of service, backwash, brine and slow rinsing, brine refill, and fast rinsing through the rotation of the handwheel.
Simple structure and reliable sealing
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with Service, Backwash, Brine & Slow Rinse, Brine Refill and Fast Rinse.
No water pass the valve of single tank type in regeneration.
Various methods for installation
The valve can be top-mounted and side-mounted (Should be used with the side-mounted connector).
Handle alternatives: Metal and plastic
