Model | 51201A(F52) |
Inlet/ Outlet | 1/2" F |
Drain | 1/2" F |
Base | M82x3 |
Riser pipe | φ16.5 |
Water treatment capacity | 1 m3/h |
Tank diameter range | 6"~10" |
Water pressure | 0.15MPa～0.6MPa |
Water | 5℃～50℃ |
Water turbidity | ＜20FTU |
Environment temperature | 5℃～50℃ |
Relative humidity | ≤95％(25℃) |

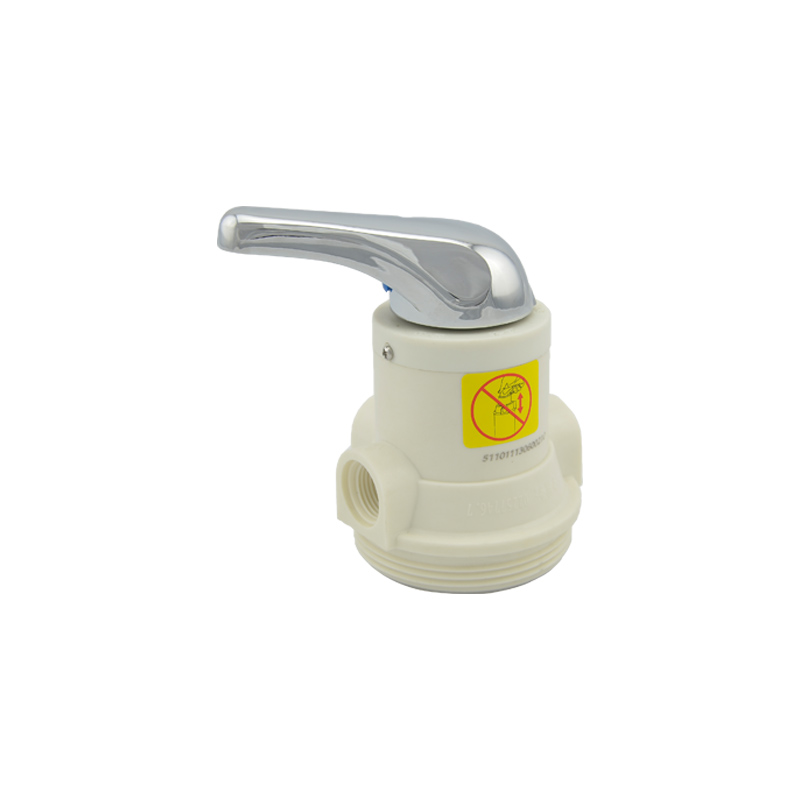

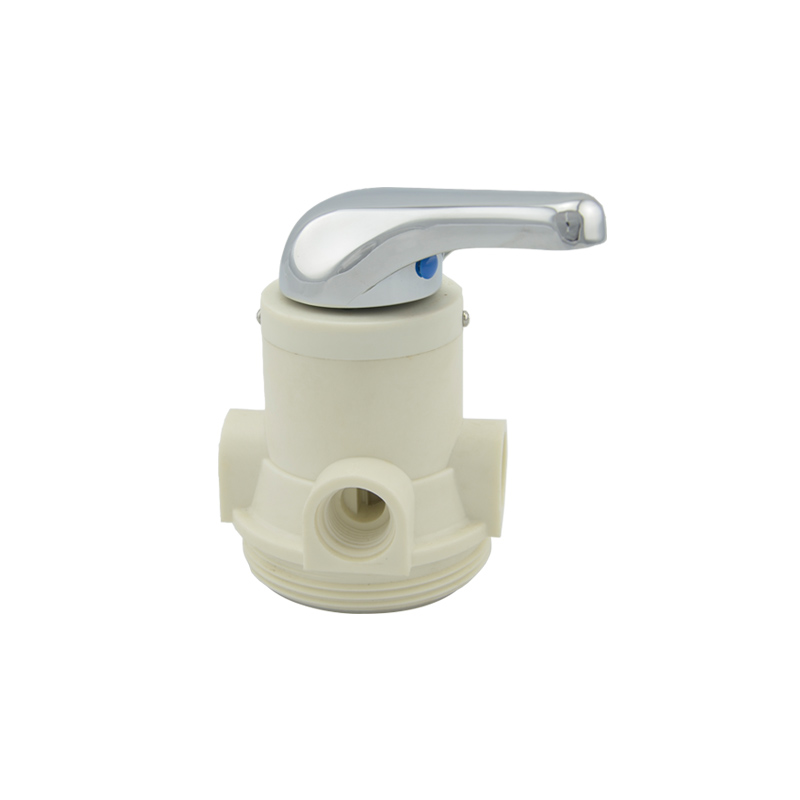

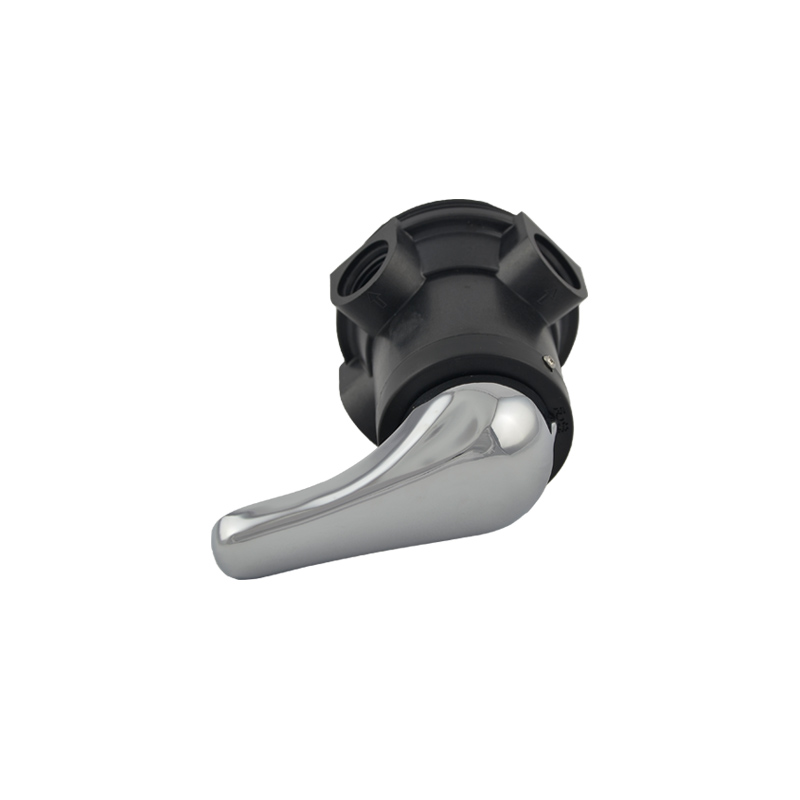

Featuring a flow rate of 1m3/h, the F52 adopts a corrosion resistant gasket for opening and closing. It can realize three functions such as service, backwash and fast rinse. It can also work under pressure. With a metal handle, you can switch the settings easily with no need for turning off the pump or the power. But when selecting a valve setting, please make sure to depress the handle before turning. This product can be used in residential filtration systems, swimming pool filtrating and RO pretreatment filtration systems.
