Model | F56A1/A2（51104/51204） |
Handle material | Metal/plastic |
Mount type | Top mount |
Inlet/outlet | 1"F |
Drain | 1"F |
Mounting base | 2.5"-8NPSM |
Riser pipe | 1.05"OD |
Flow rate | 4m3/h |
Filter tank | 6"--12" |
Water pressure | 0.15-0.6Mpa |
Water temperature | 5-50℃ |
Water turbidity | ＜20FTU |
Application | Activated carbon filter, sand filter |
Filter media | Quartz sand, activated carbon |

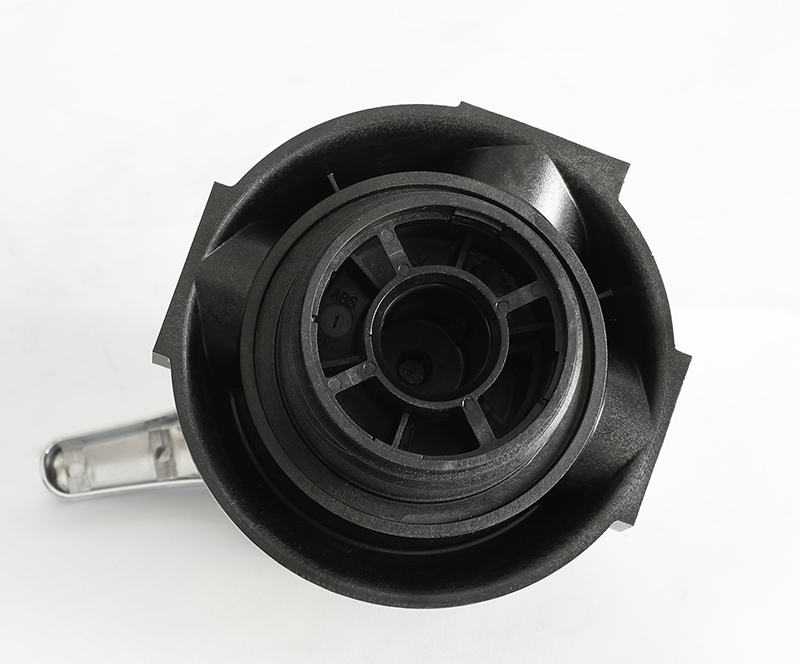

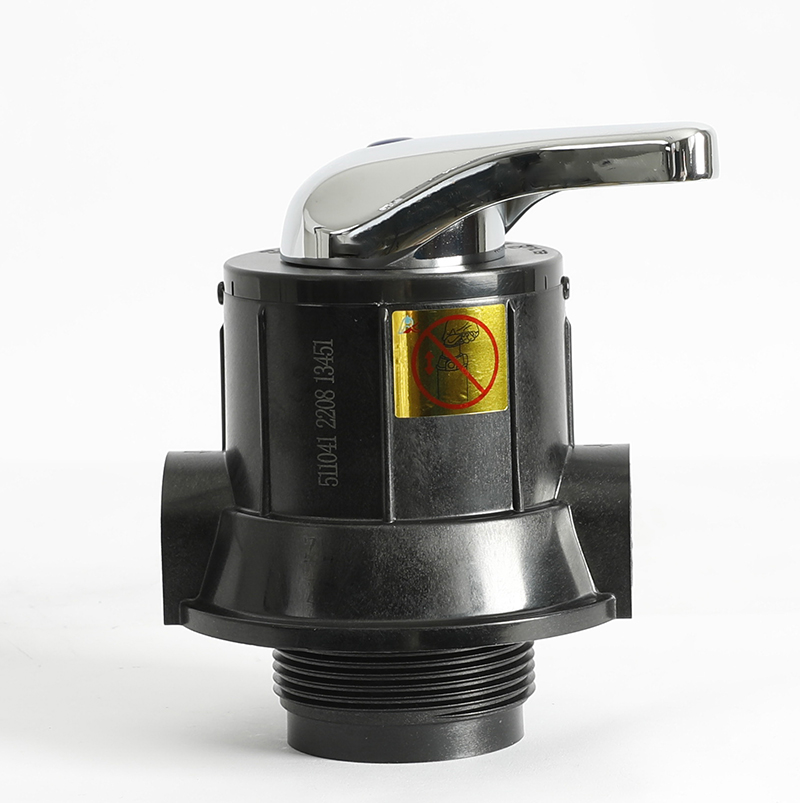

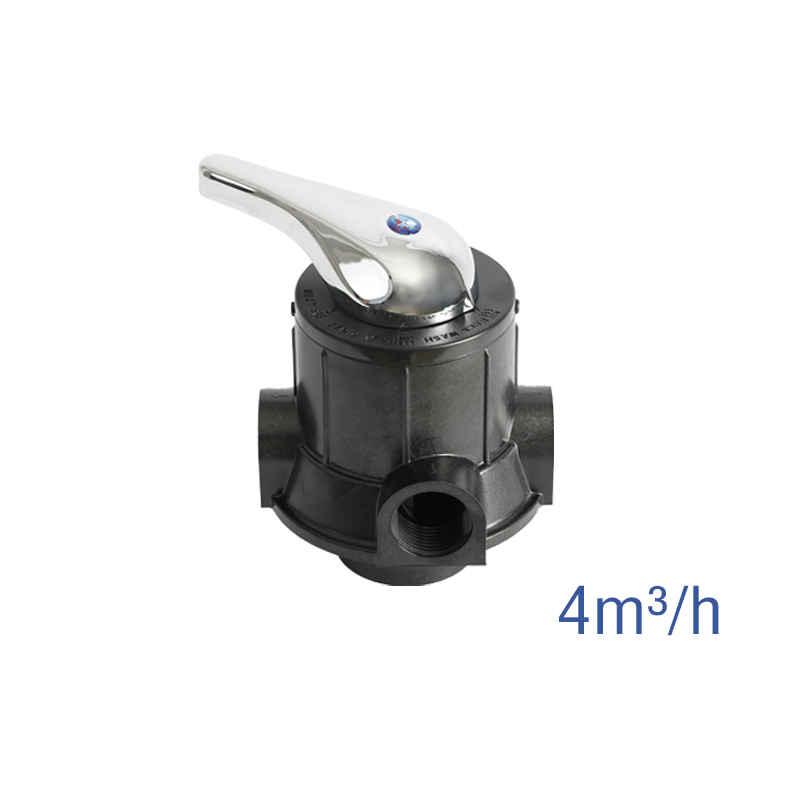

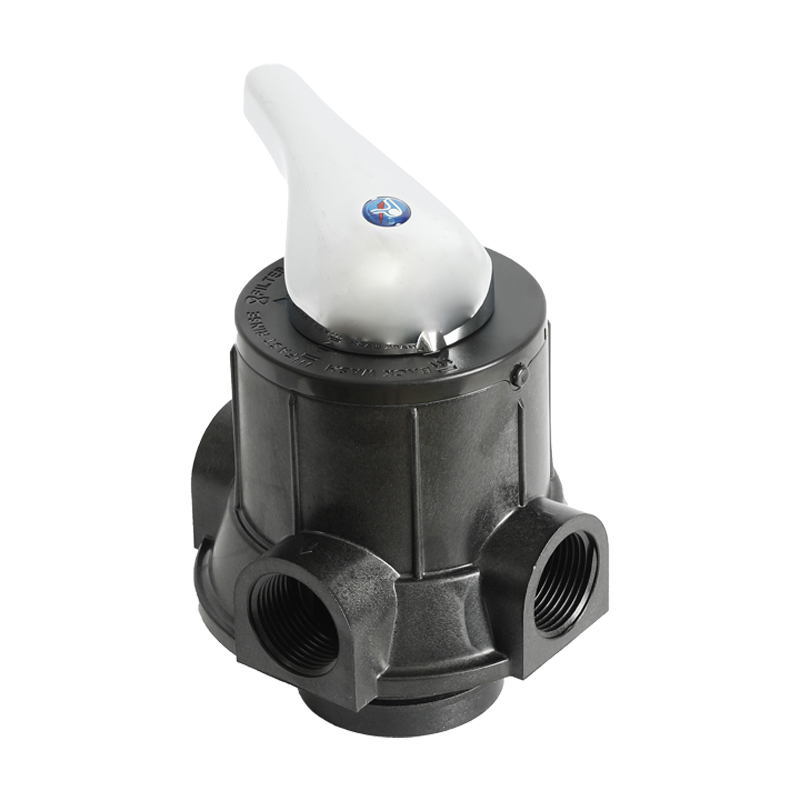

F56A Manual Multiport Filter Valve
The F56A manual multiport filter valve features a flow rate of 4m3/h and utilizes a corrosion resistant gasket for opening and closing functions. It can be used as a service, backwash, and fast rinse valve, even under pressure. With a handle, you can switch the settings easily without turning off the pump or the power. When selecting a valve setting, make sure to always depress the handle before turning.
