Model | F56D1/D2（51110/ 51210） |
Handle material | Metal/plastic |
Mount type | Top mount / side mount |
Inlet/outlet | 2"F |
Drain | 2"F |
Mounting base | 4"-8UN |
Riser pipe | 1.5"D-GB |
Flow rate | 10m3/h |
Filter tank | 10"--24" |
Water pressure | 0.15-0.6Mpa |
Water temperature | 5-50℃ |
Water turbidity | ＜20FTU |
Application | Manganese and iron removal |
Filter media | Quartz sand, activated carbon, manganese sand |

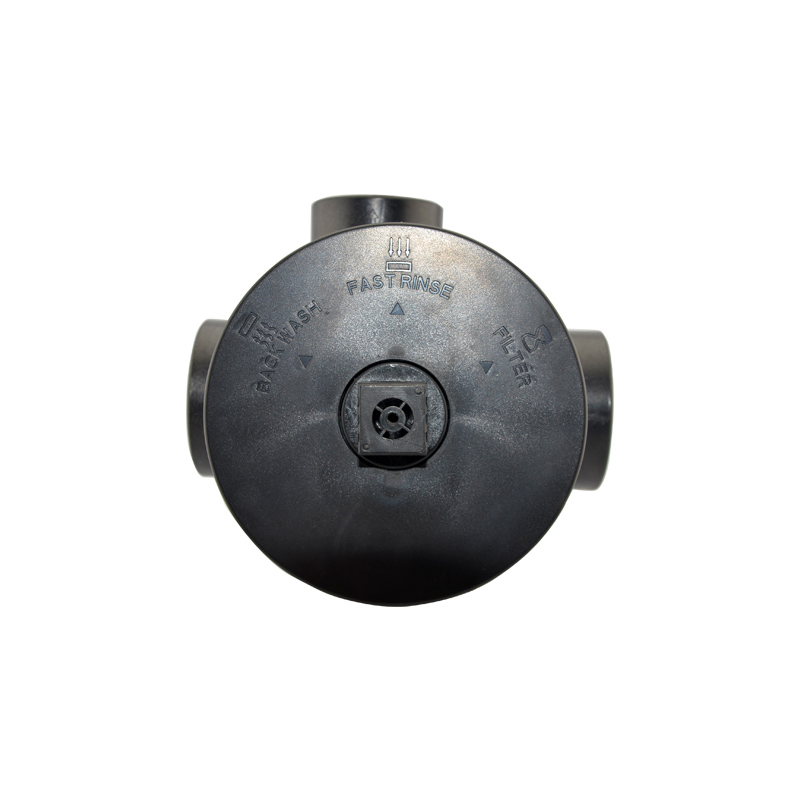

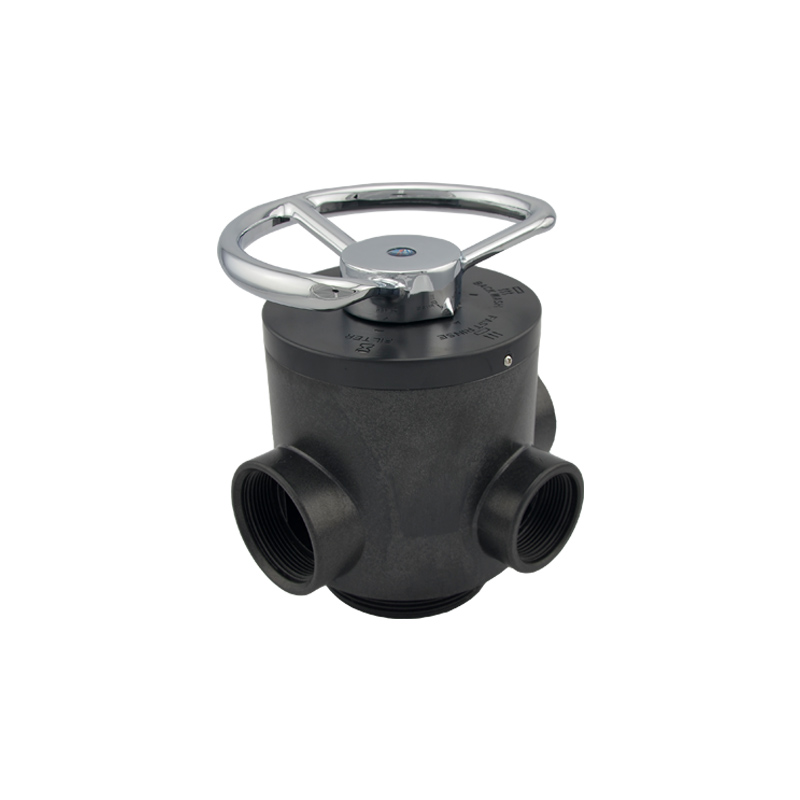

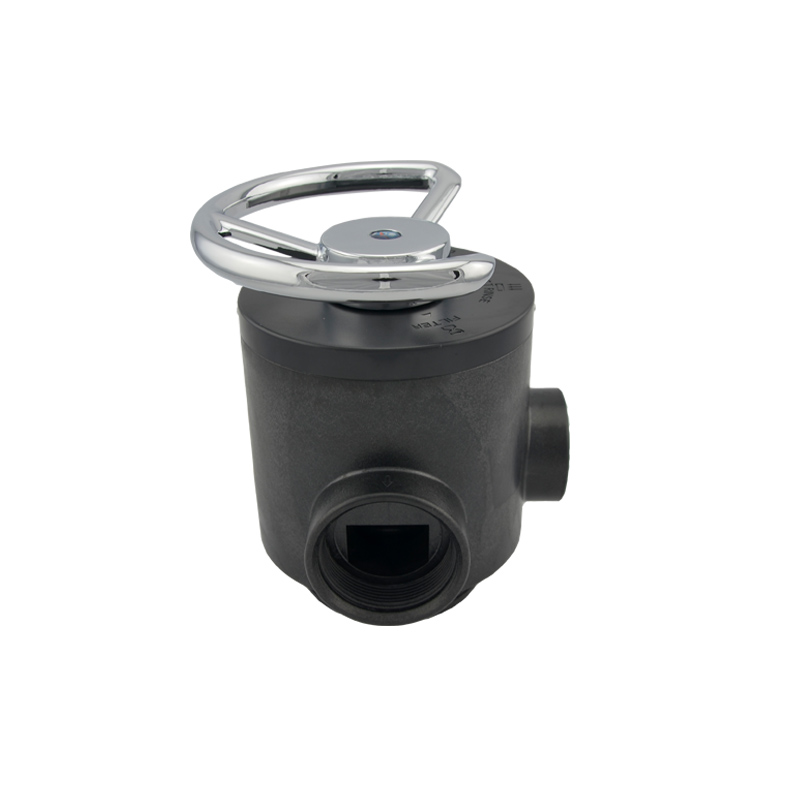

F56D Manual Multiport Filter Valve
The F56D manual multiport filter valve provides a flow rate of 10m3/h and adopts a corrosion resistant gasket for opening and closing. It can be applied as a service, backwash, or fast rinse valve. It can also work under pressure. With a rotating handwheel, you can easily switch the settings without turning off the pump. The filter can be used in residential filtration systems, swimming pool filtrating and RO pretreatment filtration systems.
System Configuration and Flow Rate Parameters
Tank size | Activated Carbon Filter | Sand Filter | ||||||
Diameter | Height | Tank Volume | Filter Material Volume | Filter Flow Rate | Backwash Flow Rate | Filter Flow Rate | Backwash Flow Rate | |
in | mm | in | L | L | m3/h | m3/h | m3/h | m3/h |
6 | 152 | 35 | 14.4 | 10 | 0.2 | 0.7 | 0.4 | 1.0 |
7 | 178 | 44 | 25.4 | 17 | 0.3 | 0.9 | 0.6 | 1.3 |
8 | 203 | 44 | 32.9 | 22 | 0.4 | 1.1 | 0.8 | 1.7 |
9 | 229 | 48 | 44.7 | 30 | 0.5 | 1.5 | 1.0 | 2.2 |
10 | 254 | 54 | 65.3 | 41 | 0.6 | 1.7 | 1.2 | 2.6 |
12 | 305 | 65 | 89.2 | 59 | 0.8 | 2.5 | 1.7 | 3.8 |
13 | 330 | 54 | 113.8 | 69 | 1.0 | 3.0 | 2.1 | 4.6 |
14 | 356 | 65 | 150.3 | 103 | 1.2 | 3.4 | 2.4 | 5.2 |
16 | 406 | 65 | 189.6 | 120 | 1.5 | 4.5 | 3.1 | 6.8 |
18 | 457 | 65 | 253 | 169 | 2.0 | 5.9 | 4.1 | 8.8 |
20 | 508 | 72 | 310.5 | 207 | 2.4 | 7.0 | 4.9 | 10.6 |
22 | 550 | 72 | 385 | 255 | 2.8 | 8.5 | 5.9 | 12.8 |
24 | 610 | 88 | 480 | 320 | 3.4 | 10.0 | 7.0 | 15.2 |
Note: The listed activated carbon filter flow rate is outcome of calculation based on a flow velocity of 12m/h; The backwash rate is based on a backwash intensity of 10L/(㎡*s). The above sand filter flow rate correspond s to a flow velocity of 25m/h; The backwash rate is related to a backwash intensity of 15L/(㎡*s)
