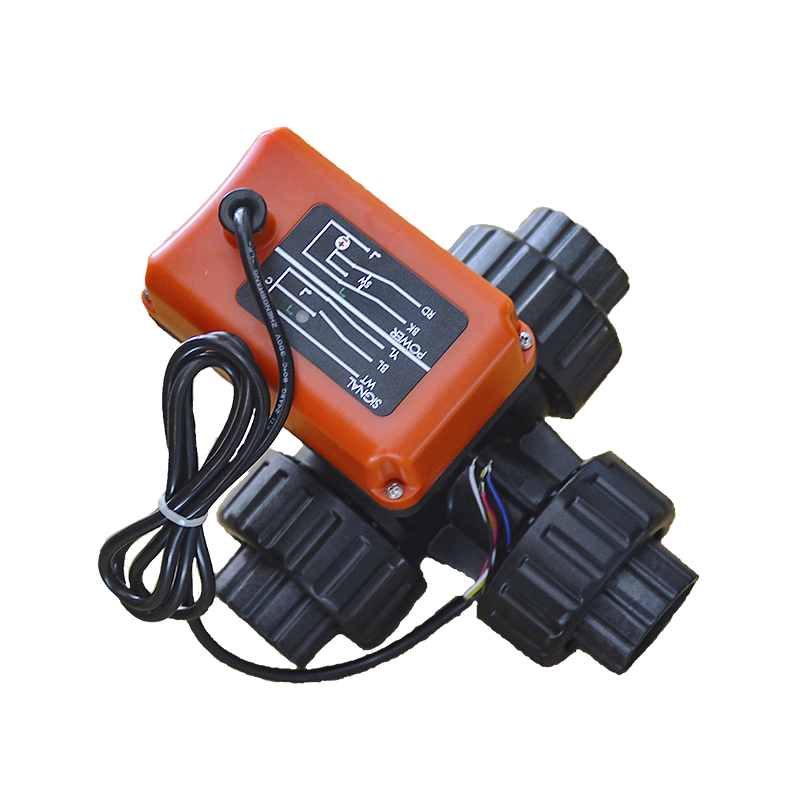

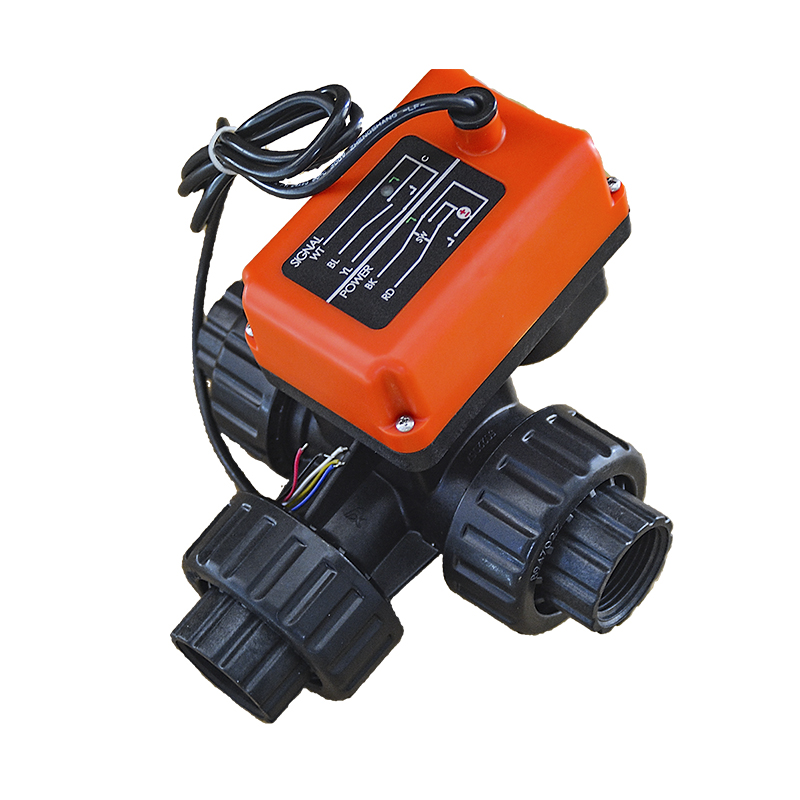

The valve body uses PPO material with an IP65 protective grade, allowing it to work great in humid environments. The valve core uses ceramics that are wear resistant and feature a service life of more than 100,000 uses. These plastic electric ball valves are suitable for controlling an array of media, including water, air, oil, acid and alkali corrosive mediums, and low viscosity fluids in the chemical industry.
Performance Parameters
Operating pressure: 0-1.6MPa
Operating temperature: 0-60℃
Material for valve stem: 316L（Harley alloy steel B or C is available upon request.)
Seals material: EPDM or Fluororubber(optional)
Protection class: IP65

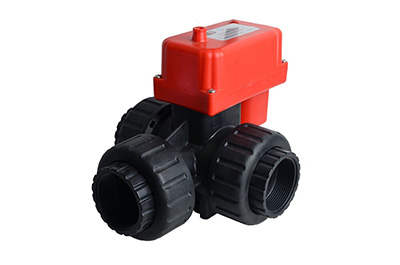

Plastic Three-Way Electric Ball Valves jointed by thread
| Nominal diameter | Wiring type | Model | Open/close time | Input voltage | Motor power | Actual power |
| DN25/ DN32/ DN40/ DN50 | 2 wires●positive and negative connection | Q914013-25(32/40/50) | 7.5s | DN25/32/40: DC12V/24V DN50: DC24V | DN25 /32:6W DN40: 10W DN50: 16W | DN25 /32: 2W DN40: 5W DN50: 6W |
| 3 wires●common | Q914013C-25(32/40/50) | 7.5s | DN25/32/40:DC12V/24V DN50: DC24V | |||
| 5 wires●position feedback | Q914031D-25(32/40/50) | 7.5s | DC24V | |||
| 6 wires●position feedback | Q914015E-25(32/40/50) | 7.5s | AC220V | DN25 /32:11W DN40: 11W DN50: 14W | DN25 /32:1W DN40: 3W DN50: 3.5W |
