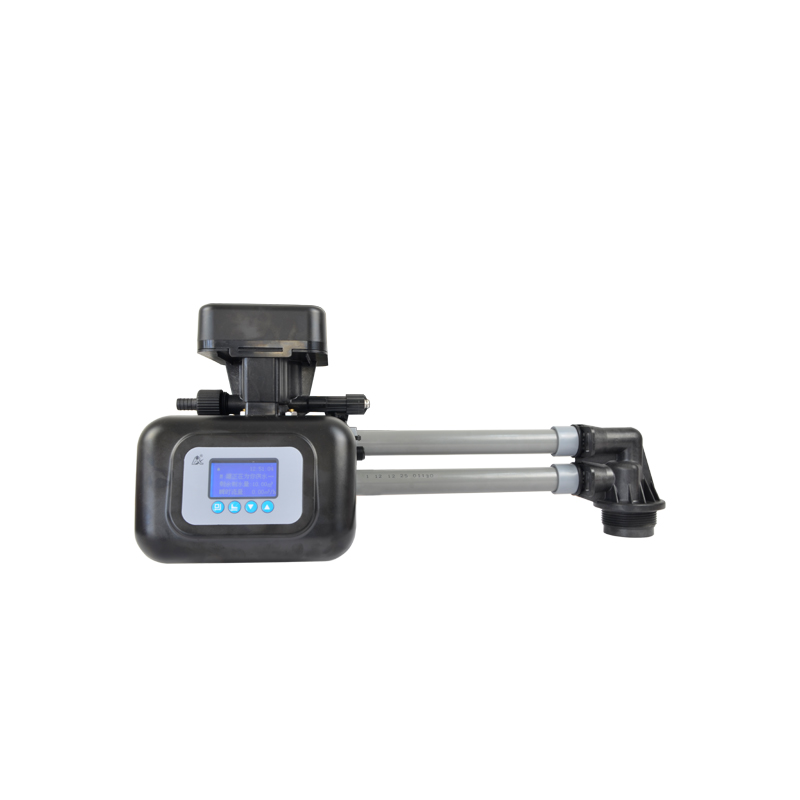

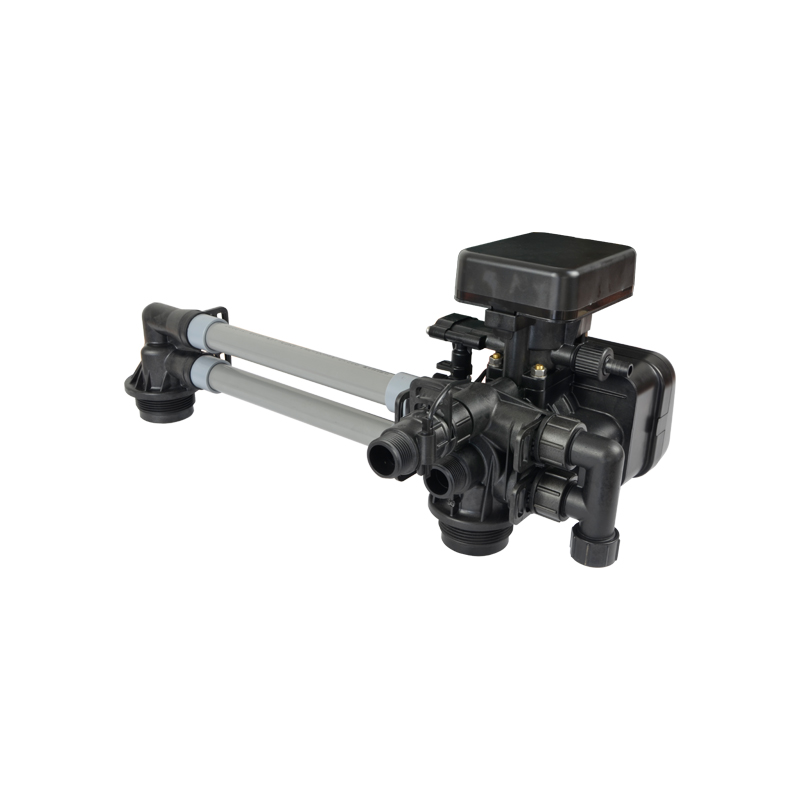

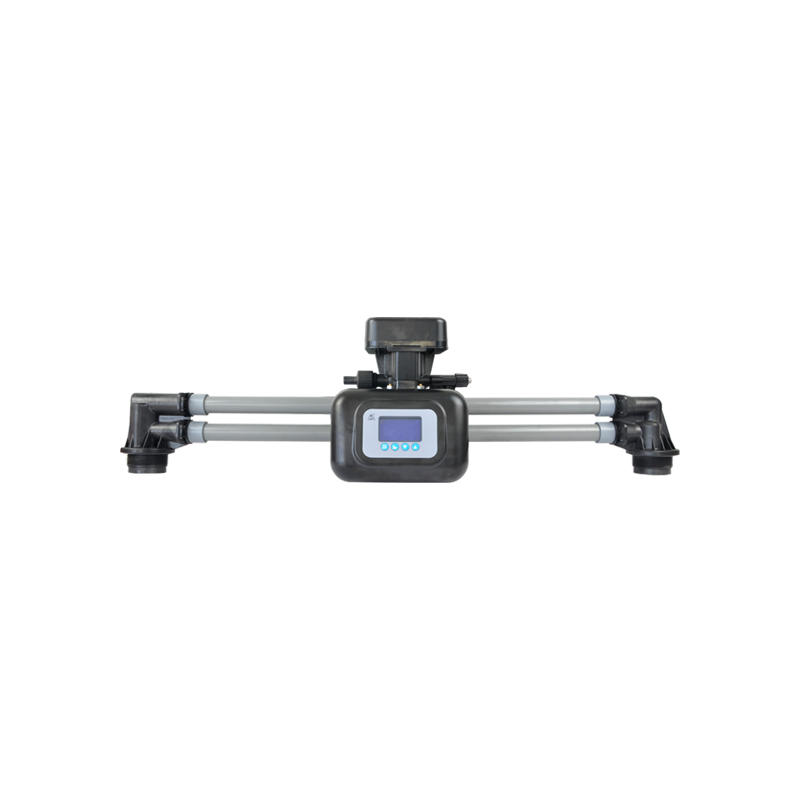

F118 Twin Alternating Softeners Valves

With a flow rate of 4m3/h, the F118 is a valve with three tanks that utilizes a planar and corrosion resistant gasket for opening and closing. Different functions, including service, backwash, brine& slow rinse, brine refill and fast rinse are all achieved through parameter modification.

Product Characteristics

? Simple structure and reliable sealing

It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with two tanks in serial Service, and the other tank Backwash, Brine & Slow Rinse, Brine Refill, Standby and Fast Rinse. The water treatment capacity of resin can increase by more than 50%, to maximize the exchange capacity of the resin and reduce the salt and water consumption.

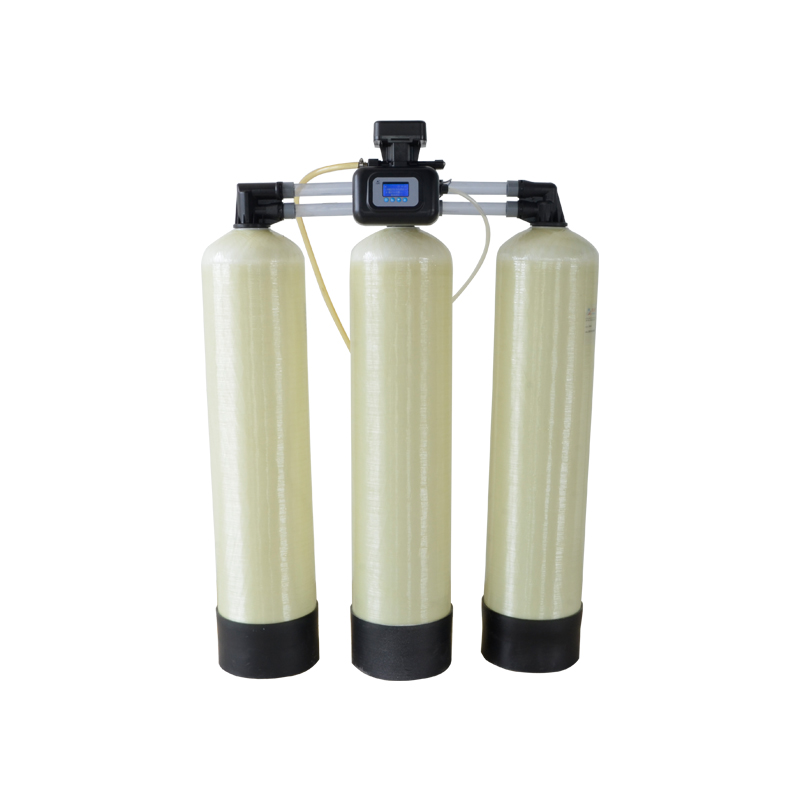

? Two in service one standby or one in service one standby optional.

Can choose signal valve on three tanks, two in service one standby or signal valve on two tanks, one in service one standby.

? Meter type

? Down-flow or up-flow regeneration optional.

Can choose down-flow or up-flow regeneration.

? Can choose regeneration with raw water or soft water

? Suitable for softening high-hardness raw water

Always two tanks are in series service and the other is standby, has backwash function and can solve the problem that the floating bed can not be suitable for high-hardness raw water with high turbidity.

? Historical record can be enquired

Can enquiry day water use and 7 day water use.

? Regeneration with one button

When the buttons are unlocked, press “Manual/Return” can start the regeneration.

? Parameters save and indicate when power off

If outage overrides 3 days, the time of day indicator “12:12”will flash to remind people to reset new time of day. The other set parameters do not need to reset. The process will continue to work after power on.

? Buttons lock

No operations to buttons on the controller within 1 minute, button lock indicator light on which represent buttons are locked. Before operation press and hold the “Up” and “Down” buttons for 5 seconds to unlock. This function can avoid incorrect operation.

? LCD screen display

Adopt LCD display, clear and briefly.

? Technician or manufacturer can choose language and control mode in background

When connected with power, press and hold both “Menu/Confirm” and “Manual/Return” to enter into background setting menu. The menu includes choice of Chinese/English and two in service one standby/one in service one standby options.

? Varied regeneration mode can be chosen.
