Model | F105A/B (82602EA)/82602EB) |
Inlet/outlet | G 3/4 |
Drain | 1/2 |
Brine line connector | G 3/8 |
Mounting base | 2.5"-8NPSM |
Riser pipe | 1.05"OD |
Flow rate | 2m3/h (0.1Mpa pressure difference) 3m3/h （0.3Mpa pressure difference） |
Filter tank | 6"--12" |
Water pressure | 0.15-0.6Mpa |
Water temperature | 5-50℃ |
Water turbidity | ＜2FTU |
Ambient temperature | 5-50℃ |
Relative humidity | ≤95%（25℃） |
Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |

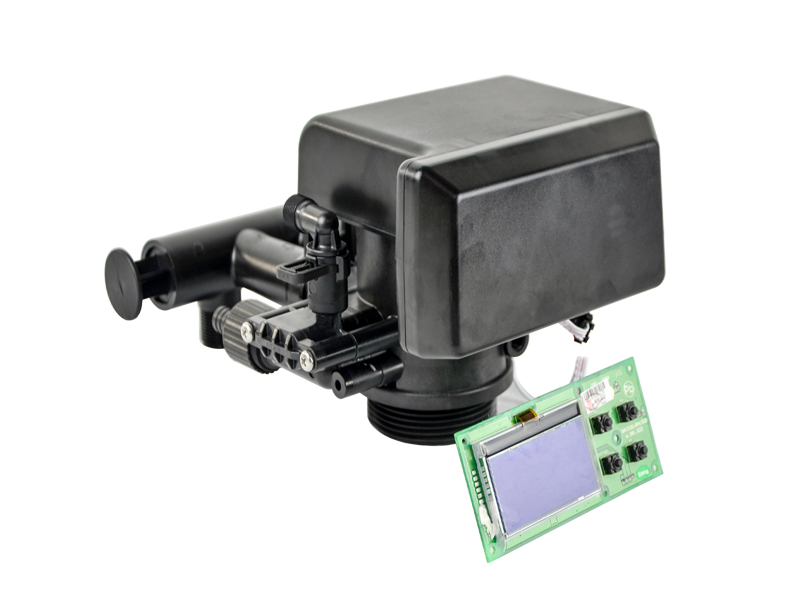

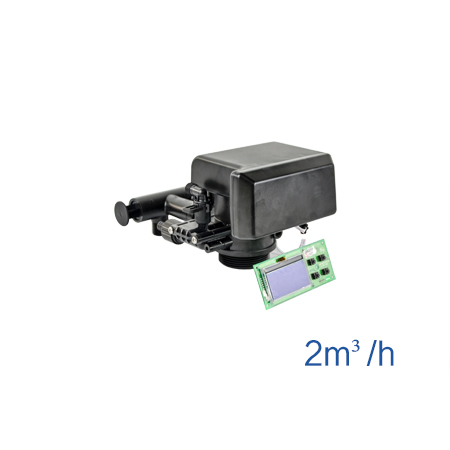

F105A Residential Water Softener Valves
Featuring a flow rate of 2m3/h, the F105 achieves different functions, including service, backwash, brine & slow rinse, brine refill and fast rinse through parameter modifications.
