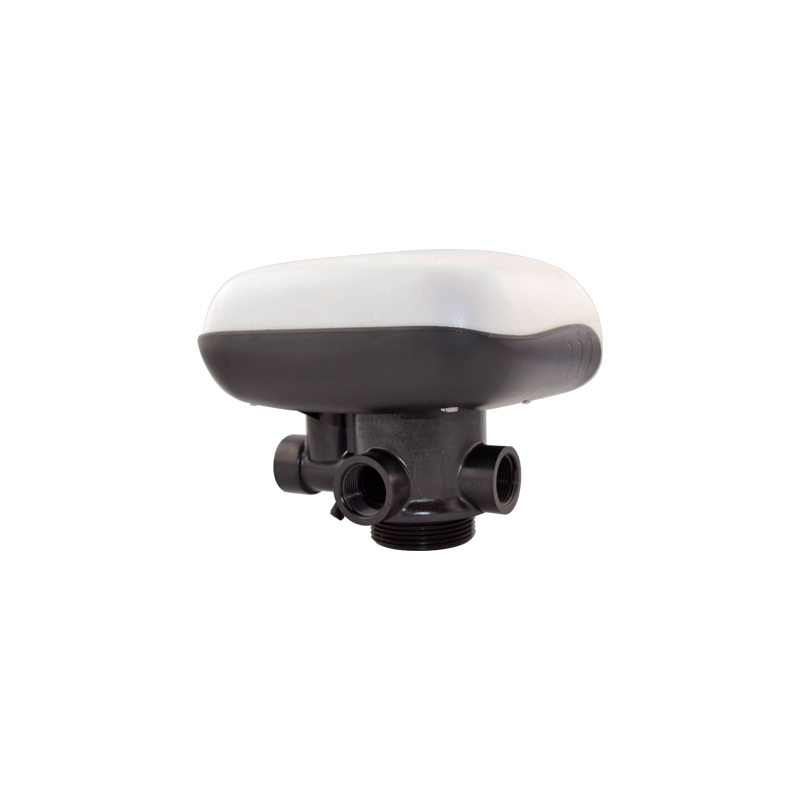

Model | 53504B(F67G1) |
Inlet/outlet | 1" F |
Drain | 1" F |
Base | 2.5"-8NPSM |
Riser pipe | 1.05" OD |
Water treatment capacity | 4 m3/h |
Tank diameter range | 6"~14" |
Water pressure | 0.15MPa～0.6MPa |
Water temperature | 5℃～50℃ |
Water turbidity | ＜20FTU |
Environment temperature | 5℃～50℃ |
Relative humidity | ≤95%（25℃） |
Power adapter | Input AC100～240V/50～60Hz Output DC12V/1.5A |
Simple structure and reliable sealing
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with Service, Backwash, and Fast Rinse.
No water pass the valve in rinsing in single tank type
Manual function
Realize rinsing immediately by pressing “Manual/Return” at any time.
Long outage indicator
If outage overrides 3days, the time of day indicator “12:12”will flash to remind people to reset new time of day. The other set parameters do not need to reset. The process will continue to work after power on.

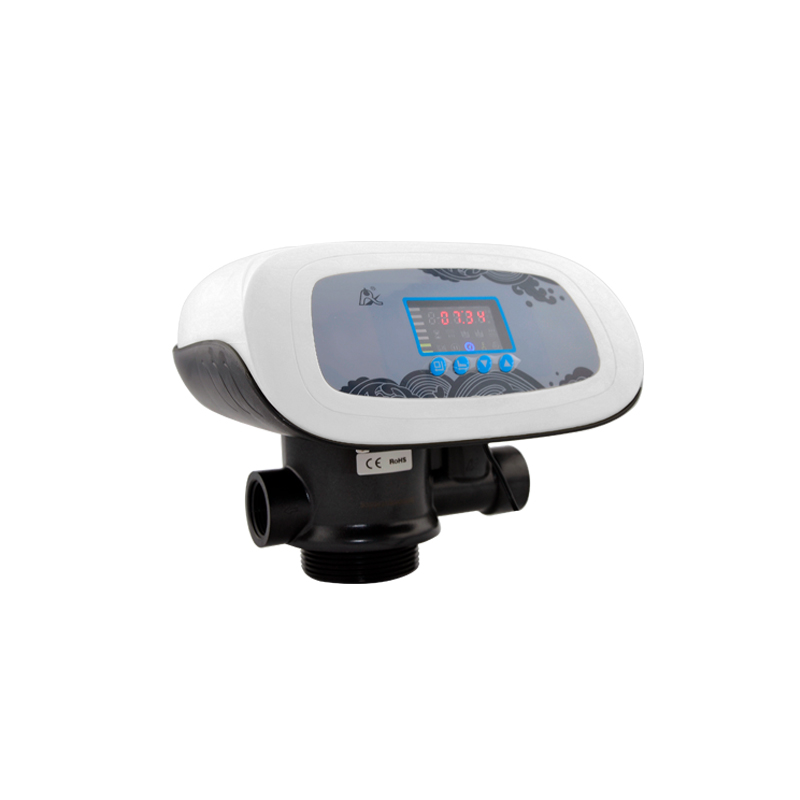

LED dynamic screen display
The stripe on dynamic screen flash, it indicates the control valve is in service; otherwise, it is in rinsing cycle.
Buttons lock
No operations to buttons on the controller within 1 minute, button lock indicator light on which represent buttons are locked. Before operation，press and hold the “Up”and “Down” buttons for 5 seconds to unlock. This function can avoid incorrect operation.
Rinsing frequency
It could set up multiple rinsing times, which means several times of backwash and fast rinse but one time of service. It is much better for cleaning the filter materials.
There are two kinds of time clock types
Time clock type valve can be chosen to be service by hours ,by dialing the red switch on main control board to “1” (Refer to the Figure 3-1). Pointing to “ON” mean the time clock type service by days; “1” means the time clock type service by hours.(Attention: after dialing the switch, please restart the power)
Interlock function
It has a function of interlock to realize only one valve in rinsing, but the other valves are in service while there are several valves parallel in system. In multi-steps treatment systems such as RO pre-treatment, when several valves are in series, there is only one valve in rinsing to ensure pass water all the times while different valves in rinsing.
